YUAN-FEV-Q
YUAN
Evaporator:

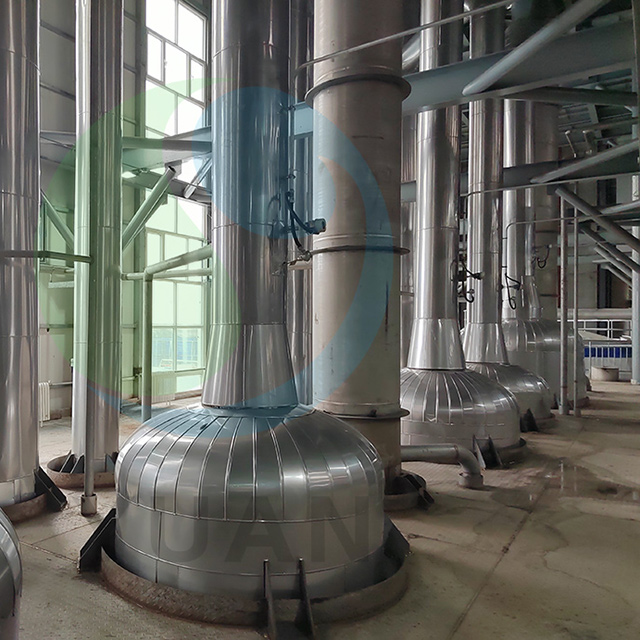

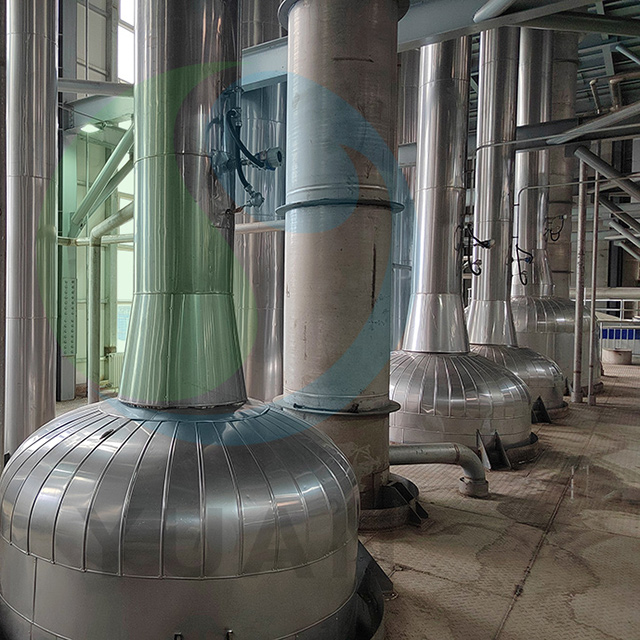

1. The tubular falling film evaporator system is to add the feed liquid from the upper tube box of the heating chamber of the falling film evaporator, and distribute it evenly into each heat exchange tube through the liquid distribution and film forming device. Under the action of gravity and vacuum induction and airflow , flow from top to bottom in a uniform film. During the flow, it is heated and vaporized by the heating medium on the shell side, and the generated steam and the liquid phase enter the separation chamber of the evaporator together. After the vapor and liquid are fully separated, the steam enters the condenser for condensation (single effect operation) or enters the next effect evaporator as The medium is heated to achieve multi-effect operation, and the liquid phase is discharged from the separation chamber. During the operation of the falling film evaporator, the residence time of the material is very short, so the heat transfer efficiency is very high.

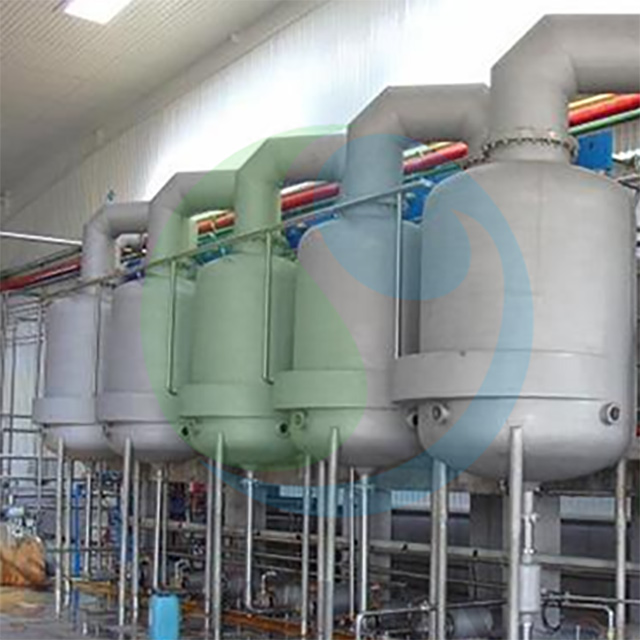

2. The biggest advantage of the plate type evaporator is that it is small in size and occupies a small space; secondly, like the tubular falling film evaporator, it is also evaporated under negative pressure, so it belongs to low temperature evaporation. Plate evaporators are used in fruit juice drinks, food, corn deep processing, medicine and other fields, such as in the production of apple juice, sorbitol, etc.
3. MVR evaporator itself is a new type of evaporation equipment, which has the characteristics of high efficiency and energy saving, and has been applied to a certain extent in various fields of various industries. The equipment mainly uses clean energy and low temperature and low pressure steam technology to generate steam , and then realize the separation of water in the medium. This evaporation technology has a certain advanced nature. It first appeared in foreign countries and can effectively replace the traditional evaporator and achieve the optimization and improvement of work efficiency.
Evaporator:
1. The tubular falling film evaporator system is to add the feed liquid from the upper tube box of the heating chamber of the falling film evaporator, and distribute it evenly into each heat exchange tube through the liquid distribution and film forming device. Under the action of gravity and vacuum induction and airflow , flow from top to bottom in a uniform film. During the flow, it is heated and vaporized by the heating medium on the shell side, and the generated steam and the liquid phase enter the separation chamber of the evaporator together. After the vapor and liquid are fully separated, the steam enters the condenser for condensation (single effect operation) or enters the next effect evaporator as The medium is heated to achieve multi-effect operation, and the liquid phase is discharged from the separation chamber. During the operation of the falling film evaporator, the residence time of the material is very short, so the heat transfer efficiency is very high.
2. The biggest advantage of the plate type evaporator is that it is small in size and occupies a small space; secondly, like the tubular falling film evaporator, it is also evaporated under negative pressure, so it belongs to low temperature evaporation. Plate evaporators are used in fruit juice drinks, food, corn deep processing, medicine and other fields, such as in the production of apple juice, sorbitol, etc.
3. MVR evaporator itself is a new type of evaporation equipment, which has the characteristics of high efficiency and energy saving, and has been applied to a certain extent in various fields of various industries. The equipment mainly uses clean energy and low temperature and low pressure steam technology to generate steam , and then realize the separation of water in the medium. This evaporation technology has a certain advanced nature. It first appeared in foreign countries and can effectively replace the traditional evaporator and achieve the optimization and improvement of work efficiency.
