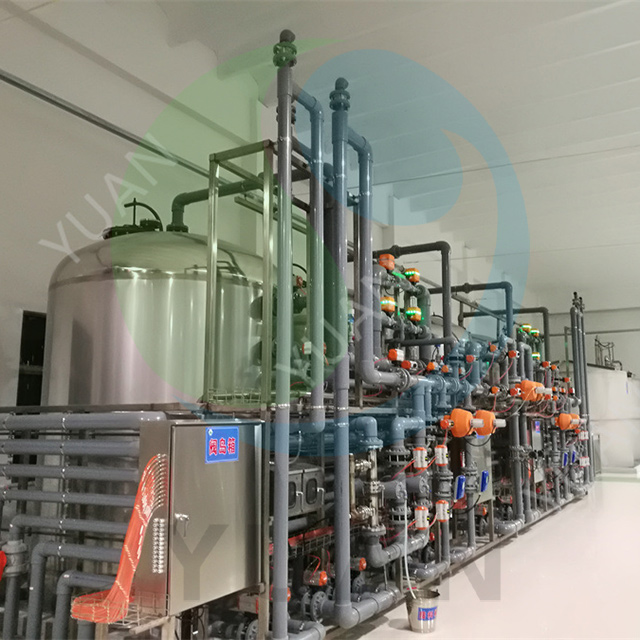

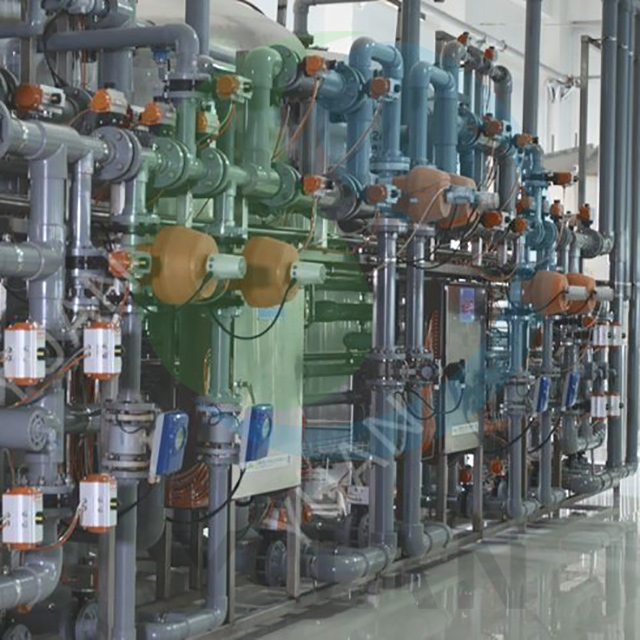

Fully Automatic Control Mixed Bed Ion Exchange Equipment

Automatic mixing bed ion exchange system is a kind of equipment for purifying and removing impurities from the material liquid.It can purify impurities by mixing anion and cation exchange resins together.This kind of equipment is not only automatic control, it needs a small number of resin column.In addition, the cost of equipment and maintenance is also very low, saving a lot of costs.This system is used in the production of maltose and glucose.
Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  • YUAN-MBIE-Q

  • YUAN

Mixed bed ion exchange system:

Mixed bed is the abbreviation of mixed ion exchange column, which is a device designed for ion exchange technology. The so-called mixed bed is to mix and fill a certain proportion of cation and anion exchange resins in the same exchange device to exchange and remove ions in the fluid. Since the specific gravity of the cation resin is larger than that of the anion resin, the anion resin is on the top and the cation resin is on the bottom in the mixed bed. Generally, the filling ratio of positive and negative resins is 1:2, and there are also filling ratios of 1:1.5, which can be considered and selected according to different resins.

Features of mixed bed ion exchange system:

The mixed bed ion exchange system solves the pain point problems in the process of automatic stratification, regeneration and mixing of cation and anion resins. The equipment adopts a fully automatic operating system, and adopts the world's best quality valves, instruments and control systems, which can ensure the stable operation of the system and realize unattended operation.

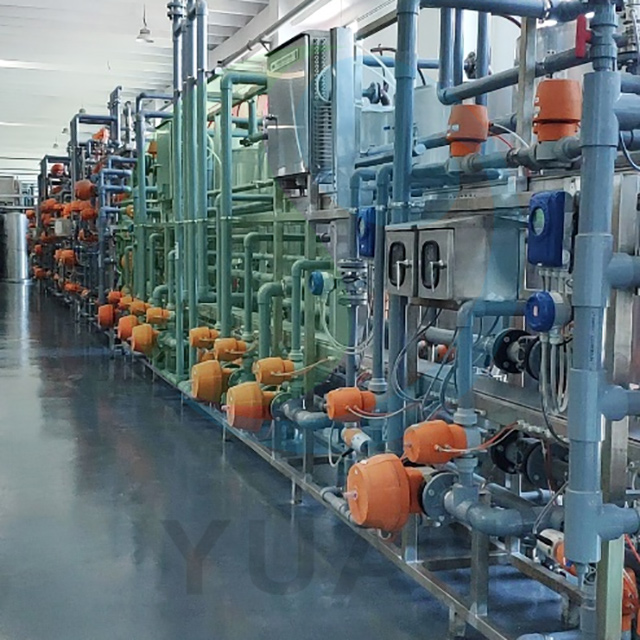

混床和脱味柱
Hot-Sale-Low-Running-Consumption-High-Yield-Automatic-Control-Mixed-Bed-Ion-Exchange-System (1)
